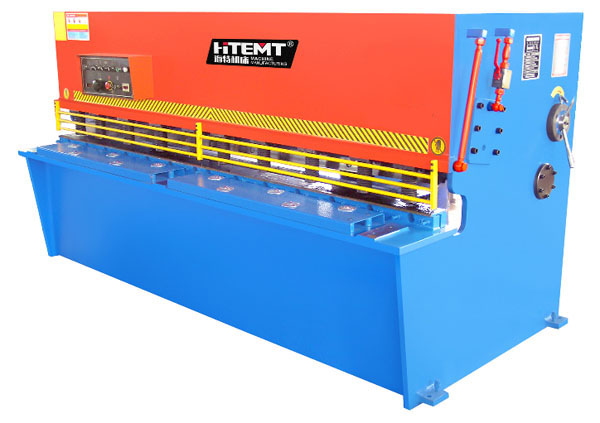

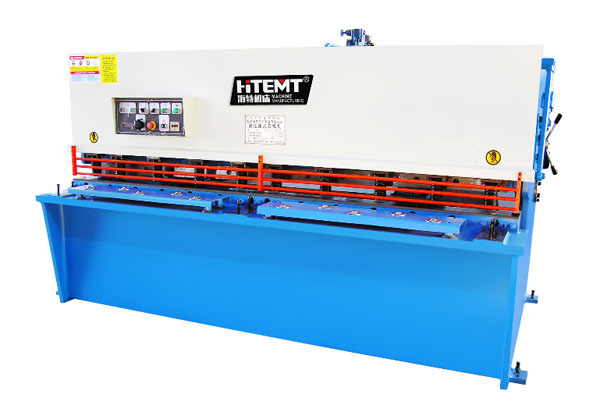

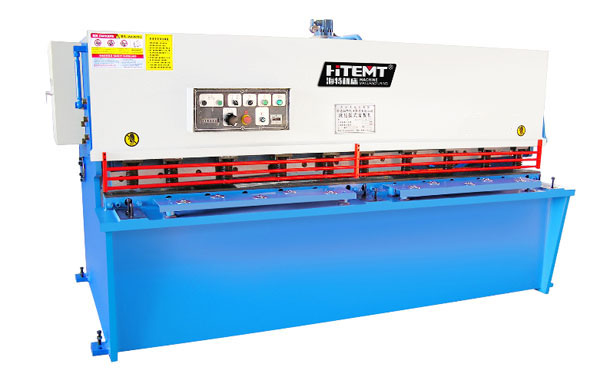

性能特點：
→ 采用鋼板焊接結構，液壓傳動，氮氣缸回程，操作方便，性能可靠，外形美觀。
→ 刃口間隙調整有指示牌指示，調整輕便迅速。
→ 設有燈光對線照明裝置，并能無極調節上刀架的行程量。
→ 工作區采用棚欄式人身安全保護裝置。
→ 后擋料尺寸及剪切次數有數字顯示。
Performance characteristics:
Adopting steel plate welding structure, hydraulic transmission, nitrogen cylinder return, easy operation, reliable performance, and beautiful appearance.
The adjustment of blade clearance is indicated by a sign, making it easy and quick to adjust.
Equipped with lighting fixtures for line illumination and capable of infinitely adjusting the stroke of the upper knife holder.
The work area adopts a shed style personal safety protection device.
The size of the rear stopper and the number of cutting times are displayed in numbers.
技術參數： Technical Specifications:
|
規格
Model |
可剪切最大板厚
Max cutting
Thickness(mm) |
可剪切最大板寬
Max cutting
Width(mm) |
行程次數
No.of stokes
(min-1) |
剪切角度
Rake angle |
后擋料距離
Adj.distance of
Back gauge(mm) |
主電機功率
Power of main motor (kw) |
外型尺寸
Overrall dimensions(mm) |
|
6×1500 |
6 |
1500 |
22 |
1°30′ |
20～500 |
5.5 |
2350×1450×1800 |
|
6×2000 |
6 |
2000 |
20 |
1°30′ |
20～500 |
5.5 |
2850×1550×1850 |
|
6×2500 |
6 |
2500 |
18 |
1°30′ |
20～500 |
7.5 |
3200×2200×1950 |
|
6×3200 |
6 |
3200 |
16 |
1°30′ |
20～600 |
7.5 |
3900×2200×1950 |
|
6×4000 |
6 |
4000 |
14 |
1°30′ |
20～600 |
7.5 |
4700×2220×1950 |
|
6×6000 |
6 |
6000 |
7 |
1°30′ |
20～800 |
11 |
6700×2250×1950 |
|
12×2500 |
12 |
2500 |
12 |
2° |
20～600 |
15 |
3270×1720×2020 |
|
12×3200 |
12 |
3200 |
9 |
2° |
20～600 |
15 |
3970×1720×2020 |
|
12×4000 |
12 |
4000 |
8 |
2° |
20～800 |
15 |
4770×1740×2020 |
|
12×6000 |
12 |
6000 |
5 |
2° |
20～800 |
18.5 |
6780×1770×2020 |
|
20×2500 |
20 |
2500 |
9 |
2°30′ |
20～800 |
22 |
3330×2505×2290 |
|
20×3200 |
20 |
3200 |
8 |
2°30′ |
20～800 |
30 |
4030×2525×2290 |
|
20×4000 |
20 |
4000 |
6 |
2°30′ |
20～800 |
30 |
4830×2535×2290 |
|
20×6000 |
20 |
6000 |
3 |
2°30′ |
20～800 |
45 |
6830×2555×2290 |
|
