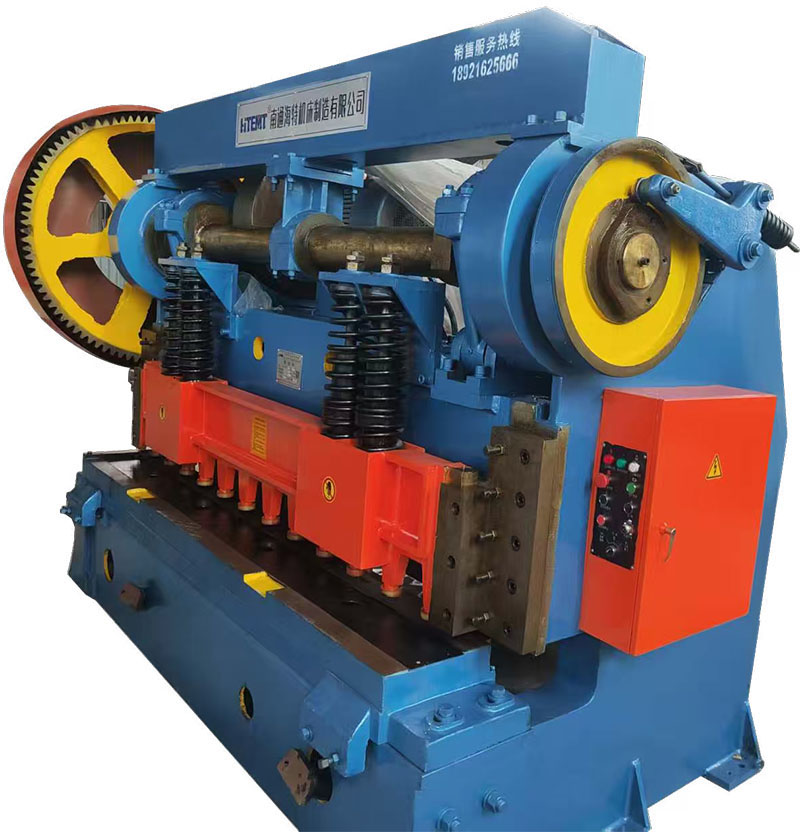

Main parameters of large mechanical shearing machine:
1. The maximum thickness that can be cut is 13 millimeters
2. The maximum board width that can be cut is 2500 millimeters
3. Rear blocking distance of 500mm
4. Travel frequency: 22-30 times/hour
5. Distance between columns 2600 millimeters
6. The strength of the sheared sheet metal is 450 N/square millimeter
7. Shear angle 3 degrees
8. Blade length 2540mm
9. The height of the workbench above the ground is 680 millimeters
10. Throat depth 230 millimeters
11. Motor model: Y180L-6 Power: 15KW Speed: 970 RPM
12. Dimensions: Length 3680mm, Width 2160mm, Height 2450mm
